Laboratory Recirculating Chillers 1050-3200W

Overview

K1 and K3 Chiller Range

Applied Thermal Control recirculating chillers are built to order to our customers’ requirements, they are designed for use with applications in laboratory, research and manufacturing processes. With over 20 years’ experience supplying chillers from 480W through to 15kW cooling capacity we offer expert, supportive and consultative pre-sales advice with free technical support from our experienced engineers, research and development team.

Our precision chillers benefit from a compact design with a small foot print, they can be easily moved on casters between applications or experiments and most of the range can effortlessly be stored on or beneath a bench.  Offering accurate temperature control to 0.1°C precision with a choice of recirculating chillers, water-to-water heat exchangers and air blast coolers.

Providing great reliability and consistent temperature stability the ATC range of chillers are quiet in operation and available with a range of pumps and standard options to suit your needs.  Each chiller is specifically designed and manufactured to suit each customers requirement. We have experience in working with food manufacturers, cosmetics producers, scientific instrument support markets (electron microscopes, X-ray diffraction, ICPMS etc.), semiconductor process, breweries, ophthalmic lens manufacturing equipment, induction heating, and more recently the chillers of choice for commercial digital printing and laser lithography markets worldwide.

With a robust design, supporting research and applications that are “always on” ATC chillers offer great reliability with up to 15kW cooling capacity. Available as UL-CSA compliant via ETL Mark option on both indoor and outdoor chillers.

The use of precision recirculating chillers can help to comply with organisational environmental policies.   By using accurately cooled house water, processes can be economical and environmentally friendly.

We supply worldwide, our chillers have a variable power supply, allowing for easy change of voltage or frequency supply from one region to another at a flick of a switch.  This is backed by an extensive network of trusted partners and skilled service agents to support our global customers.

We can offer service contract options to support your chiller in use. With UK based factory trained emergency call out engineers who can assess and if necessary fix on site, minimising the need to return units to base for repair resulting in reduced application down time.

Specifications
Download the full spec sheet here

Cooling capacity
(setpoint 20°C, ambient 20°C)
K1/1750W K3/3200W
Physical attributes
Physical dimensions (LxWxH) (mm)    545 x 420 x 575   540 x 550 x 713
Weight (kg)   66   82
Noise level (dB(A))    68    68
Toolless access   no   No

Temperature control attributes
Technology   Vapour Compression   Vapour Compression
Temperature range (standard)   +4°C to +35°C   +4°C to +35°C
Control method   PID    PID
Temperature stability (with constant load)   ±0.1°C   ±0.1°C
Temperature resolution    0.1°C   0.1°C

Water circuit attributes
System volume (L)   2.5   2.5
Pump type   1) 5L/min Rotary vane (PD)   1) 5L/min Rotary vane (PD)
    2) 10L/min Rotary vane (PD)   2) 10L/min Rotary vane (PD)
    3) 17L/min Rotary vane (PD)   3) 17L/min Rotary vane (PD)
Pump capability   1) 6bar@5L/min   1) 6bar@5L/min
    2) 6bar@10L/min   2) 6bar@10L/min
    3) 6bar@17L/min   3) 6bar@17L/min
Pressure control (settable pressure relief valve)   Internal, PRV, 20-150psi   Internal, PRV, 20-150psi
Standard fittings   1/2" Female + 3/4" Male   1/2" Female + 3/4" Male
    3/8" + 1/2" hose barbs   3/8" + 1/2" hose barbs
Standard chemical compatibility   Hexid Fluid, Water, Propylene Glycol   Hexid Fluid, Water, Propylene Glycol

Electrical attributes
Option 1   1Ø, 115V, 60Hz, 11.5A   1Ø, 230V, 50Hz, 13A
Option 2   1Ø, 230V, 50Hz, 7.3A    Switchable (see below)
Option 3   Switchable (see below)
Option 4
Option 5
Switchable configuration 1Ø, 115V/60Hz, 220V/60Hz, 230V/50Hz   Yes
Switchable configuration 1Ø, 208V/60Hz, 220V/60Hz, 230V/50Hz   Yes   Yes
Fault-cleared restart mode   Manual    Manual

Safety and fault indicator
Empty fluid reservoir alarm   Visual, lamp    Visual, lamp
Low fluid flow alarm   Visual, lamp   Visual, lamp
Temperature out of range alarm   Visual, lamp   Visual, lamp
Compressor HP switch   Standard   Standard
Motor thermal overload   Standard   Standard
Emergency off   Standard, via MCB    Standard, via MCB
Warranty options   2  year parts, 1 year labour   2  year parts, 1 year labour
    Enhanced warranty options   Enhanced warranty options

Options available
Remote alarm/power-off; SA00001   Available   Available
Low temperature pack; SA00002   Available, to -20°C   Available, to -20°C
High temperature pack; SA00003   Available, to +80°C   Available, to +80°C
Water cooled KT; SA00004   N/A    N/A
Water cooled K1; SA00005   Available   N/A
Water cooled K4/K6/K9/K12; SA00006   N/A   N/A
Water cooled K3 SA00007   N/A   N/A
Non-return solenoid pack; SA00008   Available   Available
Low flow alarm (KT); SA00010   Standard   Standard
Onboard RS485 data protocol; SA00011   Available    Available
In-line Deionising cartridge and fittings; SA00013   Available   Available
Castors to replace rubber feet; SA00015   Standard   Standard
CPC quick release connectors; SA00016   Available    Available
Installation kit; SA00017   Available   Available
UL approved version   Available    Available
DI water compatible   Available    Available
High ambient pack   N/A   Available, to +45°C
Outdoor pack   Available, to IP54   Available, to IP54
Shelter pack Available   Available
Service contract   Available    Available
Filter on outlet/inlet   Available    Available
Flow meter pack SA……..   N/A   N/A
Stainless enclosrue   Available    Available


Please contact us for further details on this chiller range.

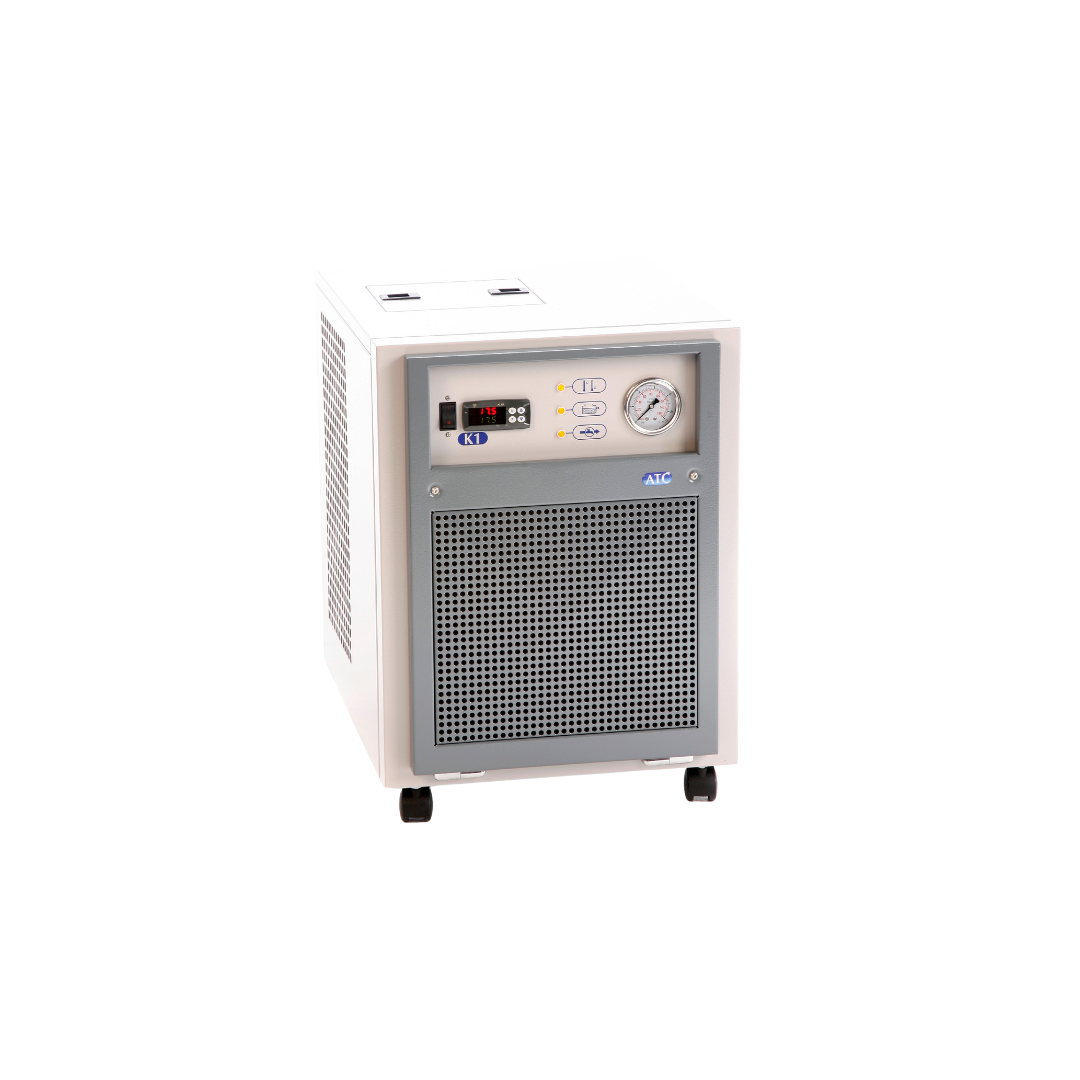

K1 Chiller

K1 Chiller

The K1 chiller is a discreet design, quiet in operation and offers a full 1.75kW of cooling, with a range of accessories.

  • Compact and robust design
  • K1 chillers are built to specification/order
  • All units can be customised to fit specific application Designed for laboratory, but with a robust steel enclosure so can be deployed in almost any environment
  • Hexid heat transfer fluid extends the life of recirculating chillers, prevents frost and protects against growth of damaging bacteria and algae
  • The K1 has an exceptionally high 1.75kW cooling capacity
  • Simple operation and an ergonomic design
  • Large bright LED display
  • Standalone filling level indicator, easy to access and change
  • Splash proof keypad with integrated mains switch
  • Reliable microprocessor PID temperature control
  • Vents are located on all faces for flexible installation
  • Pressure gauge Internal by pass valve to adjust pump pressure, as standard
  • Optional RS485 interface for PC connection
  • Permissible temperature in return line +70⁰C
  • Alarm output, potential free change over contact (maximum 30 VA)
  • Plastic moulded bath tanks, suitable for DI and nonferrous applications
  • Low liquid level protection with optical and audible alarm signal

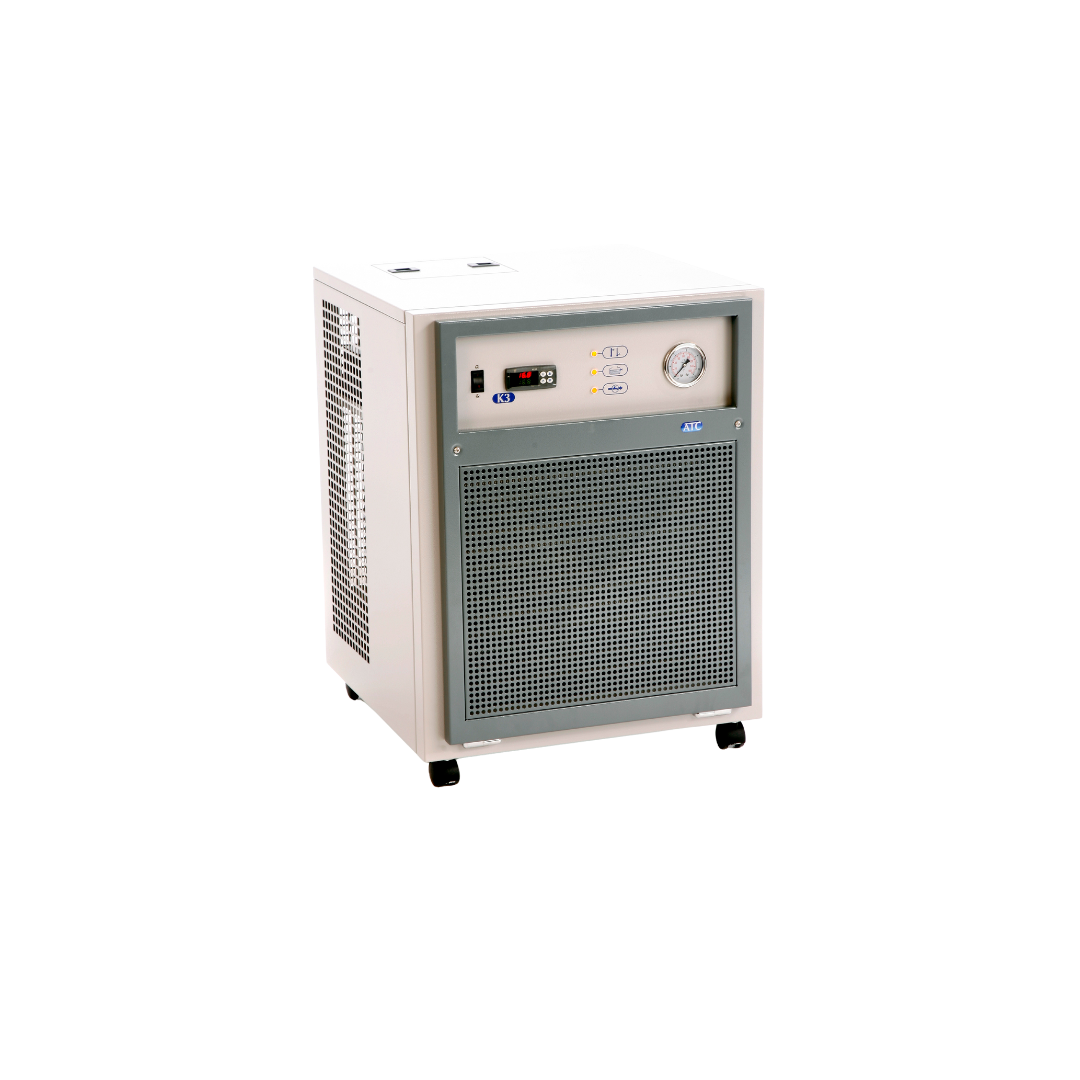

K3 Chiller

K3 Chiller

A full 3.2kW of cooling in a very compact and robust chiller. The chiller has a full range of optional accessories.

  • K3 chillers are built to specification/order
  • Compact and robust design
  • K3 units can be customised to fit specific application
  • Designed for laboratory, but with a robust steel enclosure so can be deployed in almost any environment
  • Hexid heat transfer fluid extends the life of recirculating chillers, prevents frost and protects against growth of damaging bacteria and algae
  • Simple operation and an ergonomic design
  • Large bright LED display
  • Standalone filling level indicator, easy to access and change
  • Splash proof keypad with integrated mains switch
  • Reliable microprocessor PID temperature control
  • Vents are located on all faces for flexible installation
  • Pressure gauge Internal by pass valve to adjust pump pressure, as standard
  • Optional RS485 interface for PC connection
  • Permissible temperature in return line +70⁰C
  • Alarm output, potential free change over contact (maximum 30 VA)
  • Plastic moulded bath tanks, suitable for DI and nonferrous applications
  • Low liquid level protection with optical and audible alarm signal

G3 Chiller

G3 Chiller

The G3 chiller is the first of its class of CFC, HCFC and HFC free chillers from ATC. Combining a new fridge system with improvements to both the enclosure and water circuit, the G3 is a step forward in temperature control technology.

    The G3 offers:

  • 3.5kW cooling capacity, more powerful than the K3
  • With a set point of 20⁰C and at an ambient of 20⁰C
  • Temperature range of -20C to +150C
  • New enclosure:
  • Small footprint
  • Fits under a bench
  • 505mm x 610mm x 720mm
  • Tool-less entry
  • Less noise due to vibration
  • New fridge system
  • CFC and HCFC free
  • R290 used – 99.8% reduction in global warming potential
  • 1800x less polluting in terms of CO2
  • Conforms with new legislation regarding refrigerants
  • Shaded pole fans
  • More than twice as efficient as those used in the K3
  • IP65 and ATEX rated to improve reliability in a variety of environments
  • External fill and drain ports
  • Remodelled tank in Stainless steel
  • 4 point tank level indicator
  • Reduced potential for leaks
  • Chemically resistant
  • Wide range of pump options available
  • Optional touchscreen available
  • Downloads

    Technical Brochures


    K1 - 1.75kW Recirculating Chiller Download PDF
    K3 - 3.2k Recirculating Chiller Download PDF
    G3 - 3.5kW Recirculating Chiller  Download PDF

    Instruction Manuals

    K1 and K3 Chiller Instruction Manual Download PDF
